Sharp MZ-80B

This page provides some introductory technical specifications about the MZ80B machine, and also showcases the MZ80B emulator produced by me.

Technical Specifications

Dimensions:

450mm x 520mm x 270mm

Approx. Weight:

16Kg

Processor:

4MHz Zilog Z80A Clone (Sharp LH-0080A)

RAM:

32K Standard DRAM,

Optional 32K Expansion Available.

2K Text Video RAM

ROM:

2K Character Generator

2K IPL (Initial Program Loader)

Operating System:

(None built in):

Initial Program Loader was used to load operating systems from Disk/Tape. These included Sharp BASIC, Disc BASIC (FDOS), CP/M 2.2

Keyboard:

92-Key Professional Touch

Display:

Built-In 9″ Green CRT (60Hz VSync, 15.75 KHz HSync)

Text:

40×25 and 80×25 software-switchable

Graphics:

(Optional) Hi-Res (320×200 pixels) – Each board contains 8K Video RAM:

Capacity for 2 Graphics Boards giving 2 independent mono 320×200 planes.

Audio:

8cm 32-Ohm 1-Channel Speaker. Max 400mW @ 440Hz

Storage:

Integral Cassette Tape. Software controlled transport system. 1800 bits/sec using Sharp PWM.

(Optional) Dual 5.25″ Floppy Drive

Architectural Components:

Zilog Z-80A CPU, Zilog Z-80A PIO Controller, Intel 8253-Compatible Precision Timer, Intel 8255-Compatible Peripheral Interface

Accessories

The MZ-80B was originally designed as a modular system. Some of the planned expansion modules were subsequently manufactured and sold, others, sadly, were not.

MZ080RM – 32K Expansion RAM Unit

This module inserts in “piggy-back” fashion over the standard 32K of RAM providing a total of 64K RAM

MZ-80GM – Hi-Res Graphics Card

This card clips beneath the CRT housing and connects to the motherboard using 2 ribbon-style cables with IDC Connectors.

MZ-80GMK – 2nd Hi-Res Graphics Card

This card is inserted into the MZ-80EU Expansion Unit, and coupled to the MZ-80GM 1st Graphics card using a ribbon-style cable.

MZ-80EU – Expansion Unit

This module holds up to 6 expansion cards, and is inserted in the cavity at the rear of the machine. It is connected to the PSU and Motherboard of the main machine. A MUST in order to add expansion cards.

MZ-80IO2 – Universal I/O Card

This card claims to offer a bi-directional interface to the computer. It was intended primarily for use as an RS-232 interface. Inserts into the MZ-80EU Expansion Unit.

MZ-8PB5I – Printer Interface Card

This card inserts into the MZ-80EU Expansion Unit and provides an interface for a centronics-style printer. Various printers were available (80-Col and 132-Col), and were based around EPSON Engines. Additional ROM sets were available to adapt existing Epson printers to print the Sharp character set.

MZ-80FI – Floppy Disk I/O Card

This card inserts into the MZ-80EU Expansion Unit, and allows connection of the MZ-80FD/FB/FBK Floppy Drive Units. Based around a Ferranti MB-8866 FDC I/C.

MZ-80FB(K) – Dual 5.25″ Floppy Drive (and MZ-80FD, the later model)

This external dual-floppy drive unit was suitable for connection to the MZ-80FI interface, and provided 2 drives each with 286K of storage capacity. Geometry of the disks was: 70 tracks (35 double-sided), 16 sectors, 256-Bytes per Sector.

Other expansions

Other devices planned included a Hard Disk interface, Punched Card Reader, Color Display, IEEE-Compatible interface. Unfortunately, details of these are scarce, and I have not been able to find out whether they were ever produced (either in prototype or commercially).

Tips for the Enthusiast

Tips & Tricks that may be of use or interest to other Sharp Collectors and Enthusiasts world-wide:

Tip #1 – Where there’s smoke, there’s fire?

Well, not exactly! I experienced a Power Supply failure with both the Computer and Floppy Drive. When connected to the mains, they produced lots of smoke.

This was caused by faulty smoothing capacitors across the supply connector. These capacitors are not required with today’s high-quality domestic power distribution, and can be safely removed, eliminating the smoke problem.

I have performed this mod myself, and it works OK for me, however I accept no liability for damage caused by performing this. Remember: Always disconnect the power supply before opening a piece of equipment, and if you are not sure what you are doing, always consult the aid of a qualified electrical engineer.

Emulator

After several incarnations (MS-DOS, Linux X11), finally the Windows version was completed. This is the most complete of any of the versions of my MZ80B Emulator (and in fact the only one I still have source code for!).

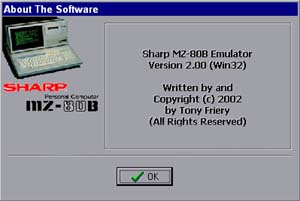

MZ80B Emulator About Box

MZ80B Emulator About Box

The emulator features a limited set of options, allowing for automatic emulated speed adjustment, and the ability to enable/disable the graphics memory expansion, RAM expansion and to insert/eject virtual floppy images.

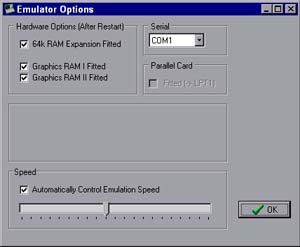

MZ80B Emulator Options Screen

MZ80B Emulator Options Dialog

The virtual floppy format is that used by the amstrad emulator utility CPDREAD (.DSK format) as this is the most compatible for the two primary formats used by the Sharp machine; a CP/M format, and an FDOS format. The emulator also includes a ubiquitous CPU debug display:

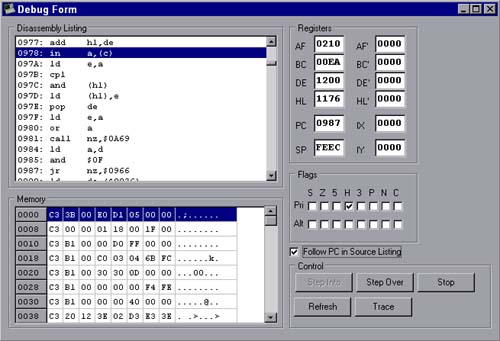

MZ80B Emulator Debugger

The MZ80B Emulator Debugger

Emulation enables the use of the genuine IPL bootstrap ROM to boot the machine:

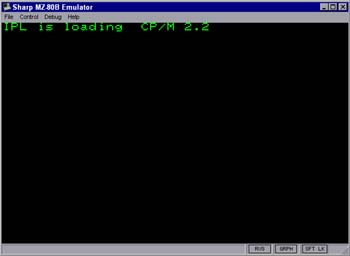

MZ80B IPL Screenshot

Screenshot of MZ80B IPL

This ultimately permits both of the primary Operating Systems which were available to be executed (Sharp’s own FDOS which was a disk-based BASIC, and Digital Research CP/M 2.2):

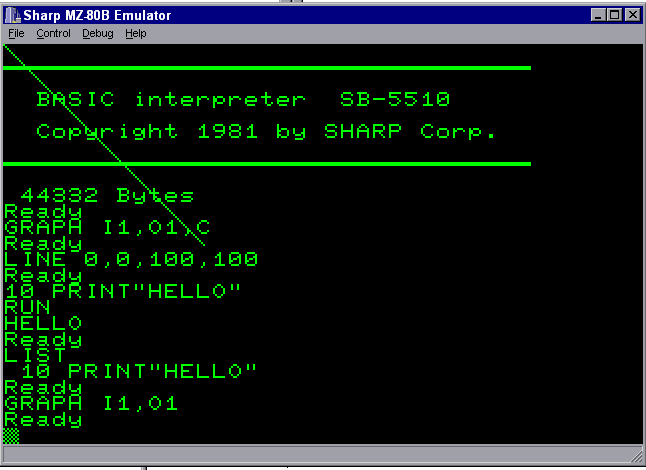

A screengrab of MZ80B BASIC Running

MZ80B BASIC Demonstrated

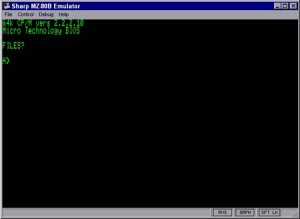

The sign-on message for MZ80B CP/M

The sign-on message for MZ80B CP/M

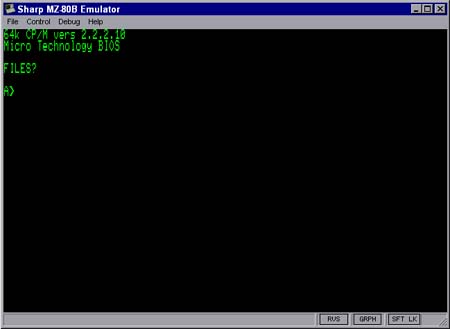

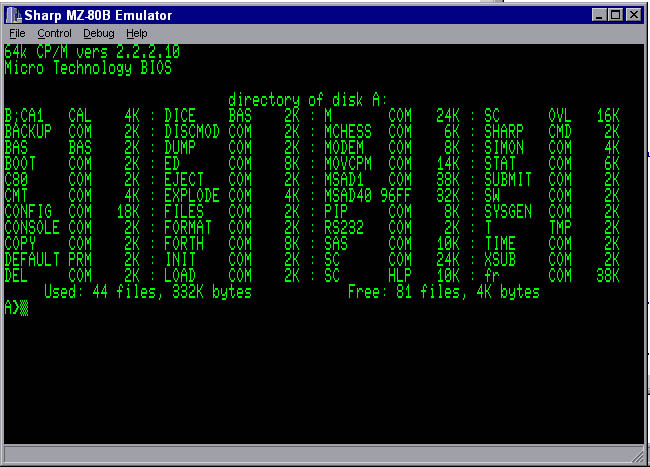

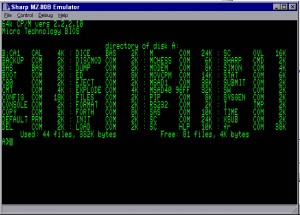

MZ80B CP/M demonstration screenshot

Screenshot of MZ80B CP/M Running

When running FDOS, this enables some of the old games which were available for the Sharp MZ80B to be loaded from Disk and played:

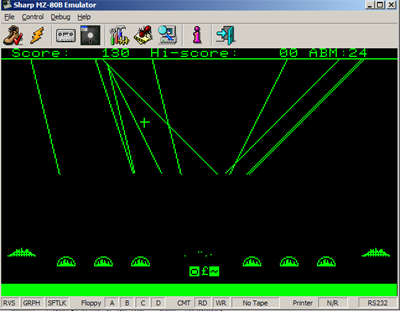

MZ80B Game Screenshot - Missile Command

MZ80B Game - Missile Command Clone

MZ80B Game Screenshot - PacMan #1

MZ80B Game - PacMan Clone #1

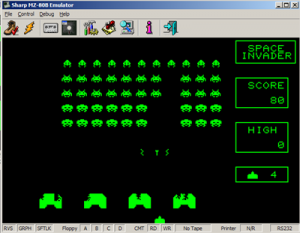

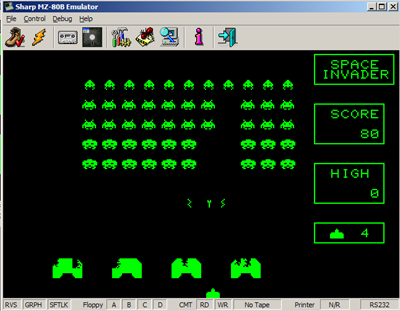

MZ80B Game Screenshot - Space Invaders

MZ80B Game - Space Invaders

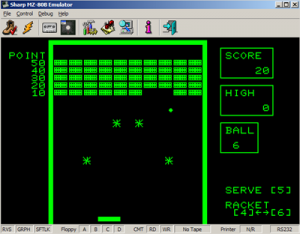

MZ80B Game Screenshot - Arkanoid

MZ80B Game - Arkanoid

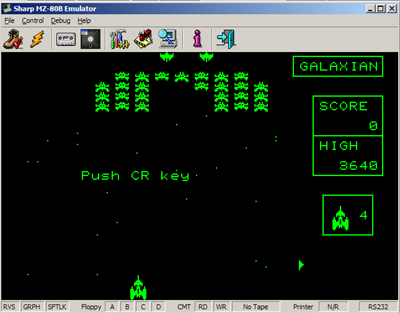

MZ80B Game Screenshot - Galaxian

MZ80B Game - Galaxian

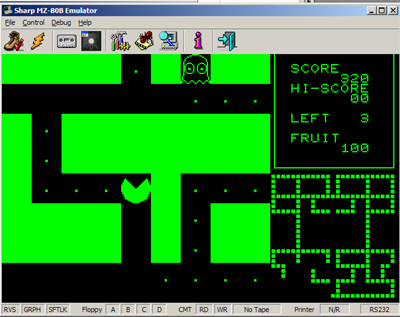

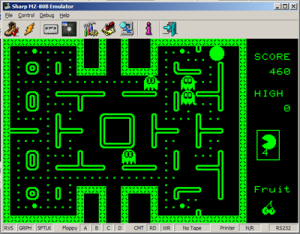

MZ80B Game Screenshot - PacMan #2

MZ80B Game - PacMan Clone #2

Download Binaries:

  MZ80B Emulator Binaries (934.1 KiB, 1,878 hits)

Download Source:

  MZ80B Emulator Source (107.1 KiB, 1,012 hits)

Download pack of  Floppy Images:

  SharpDisks.rar (2.4 MiB, 1,867 hits)

Download Borland Libraries (needed by discmgr.exe):

  Borland Libraries (381.4 KiB, 1,215 hits)
